Embedded Computing

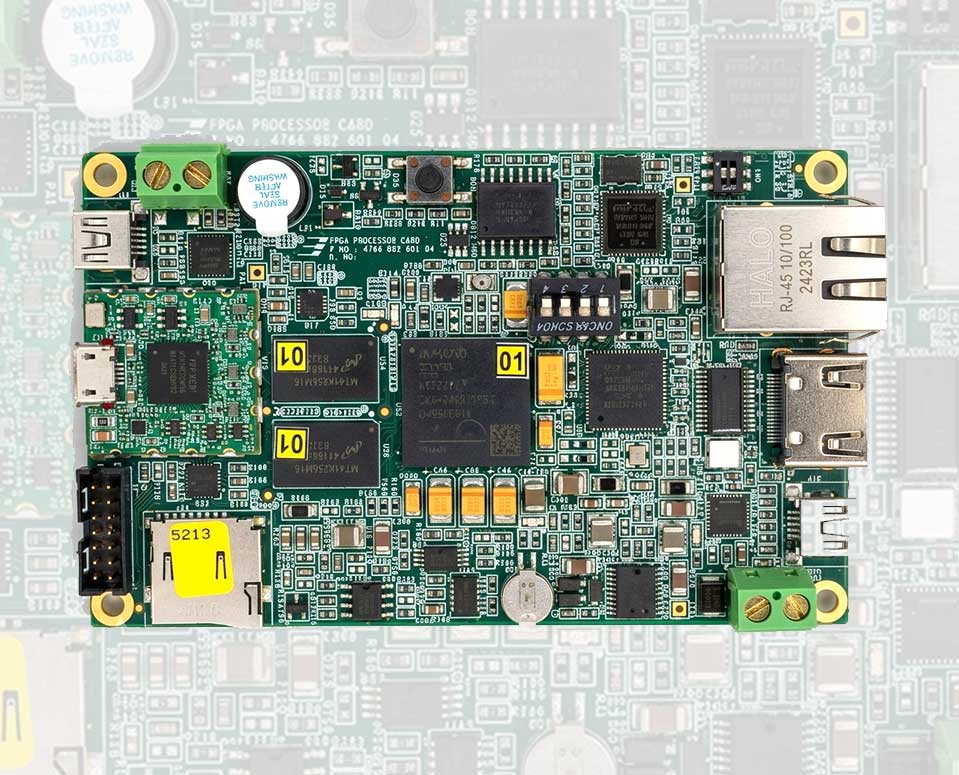

ZYNQ FPGA BOARD

An automotive-grade, high-performance Single Board Computer built around the AMD Xilinx Zynq-7020 All Programmable SoC, combining dual-core ARM processing with FPGA programmable logic.

ZYNQ FPGA BOARD
ZYNQ FPGA BOARD

Technical Overview

The Zynq FPGA Board is an automotive-grade, high-performance Single Board Computer (SBC) built around the AMD Xilinx Zynq-7020 All Programmable System-on-Chip (SoC). It combines a dual-core ARM Cortex-A9 processing system (PS) with Xilinx 7-series FPGA programmable logic (PL) on a single device, enabling seamless integration of software and hardware acceleration.

Designed for demanding embedded and real-time applications, the board delivers a powerful platform for Embedded Linux, digital signal processing (DSP), software-defined radio (SDR), high-speed data acquisition, industrial automation, machine vision, robotics, and automotive electronics.

The integrated ARM processors support operating systems such as Embedded Linux, while the FPGA fabric enables implementation of custom hardware accelerators, high-speed interfaces, and real-time signal processing algorithms. This heterogeneous architecture provides excellent performance, flexibility, and low-latency operation, making the board well suited for mission-critical and industrial applications.

Key Capabilities

AMD Xilinx Zynq-7020 All Programmable SoC

Dual-core ARM Cortex-A9 processor

7-series FPGA programmable logic

Automotive-grade

Support for Embedded Linux, bare-metal, and real-time operating systems (RTOS)

High-speed I/O interfaces for industrial and embedded applications

Hardware acceleration for DSP, image processing, and custom logic

Suitable for automotive, industrial automation, aerospace, robotics, medical, and communication systems



Technical Specifications

SOC

Xilinx Zynq-7020 (dual-core ARM Cortex-A9 + FPGA)

OS Support

Embedded Linux, bare-metal, RTOS

Grade

Automotive-grade

Interfaces

Gigabit Ethernet, USB 3.0, PCIe, JTAG, HDMI, SD Card, FMC



Applications & Standards

Digital signal processing (DSP) Software-defined radio (SDR) Image and video processing Robotics and industrial automation High-speed data acquisition PCIe hardware acceleration Radar Electronic warfare Aerospace and defense applications
